Product Details
＋Benefits
- Long life according to EUROBAT Classification.
- Maximum charge efficiency.
- High gas recombination efficiency.
- Low self-discharge rate.
- Easy installation and handling.
- Vertical or horizontal installation.
Applications
- UPS units.
- Emergency power.
- Starting generators.
- EPS units.
Technical Specifications

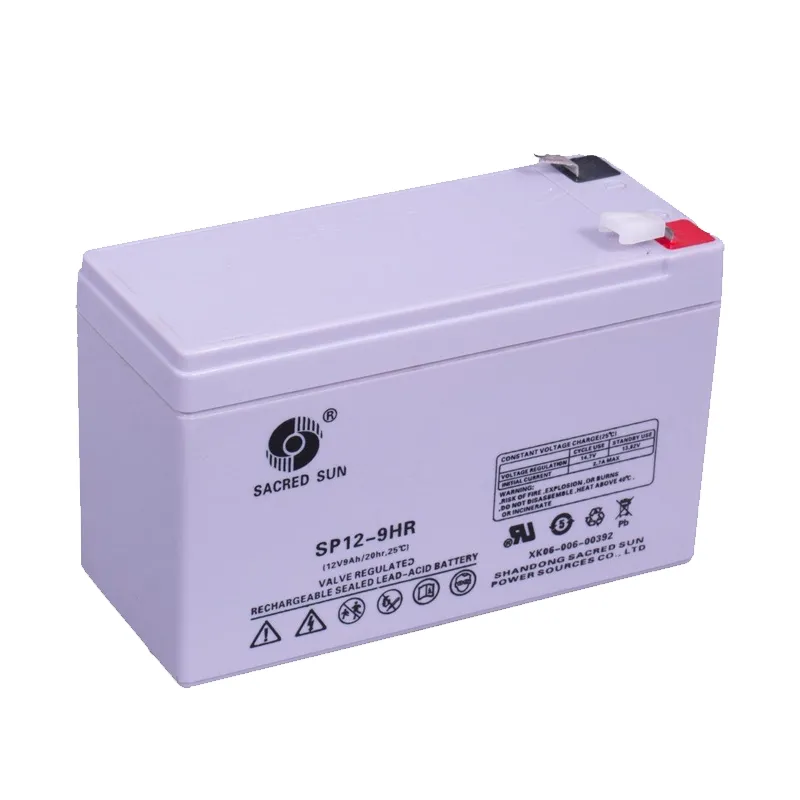

- Battery Model: SSP12-9HR.
- Design Life (years, 25°C): 5 years.
- Capacity (Ah, 25°C): 20HR (0.35A,1.75V).
- Reference Internal Resistance (mΩ): 14.5 ( full charged @ 25°C).
- Maximum Discharge Current (A/5 Sec.): 135.
- Self-Discharge (25°C): ≤3% per month.
- Short Circuit Current (A): 230.
- Charge Voltage (V/cell, 25°C): Cycle use = 2.45 (-3.5mV/℃/cell), max charge current: 2.7 A.
- Charge Voltage (V/cell, 25°C): Float use = 2.27 (-3.5mV/℃/cell).
- Weight: 2.70 kg.
- Dimensions (LxWxH): 151 x 65 x 94 mm.
