Physical Parameter

• Pixel Configuration Single SMD
• Pixel Pitch (mm) 1.56
• Module Dimensions (W x H, mm) 250 x 281.25
• Screen Resolution (WxH) 1,920 x 1,080
• Screen Dimension (W x H x D,mm) 3,004 x 1,692 × 36.5 (Thickest 70)
• Screen Weight (kg) 135
• No. of Modules per Screen (W x H) 12 x 6 (Total 72)
• Screen Surface Area (㎡) 5.06
• Physical Pixel Density (pixels/m²) 409,600
• Flatness of Cabinet ±0.2 mm
• Cabinet Material Aluminum

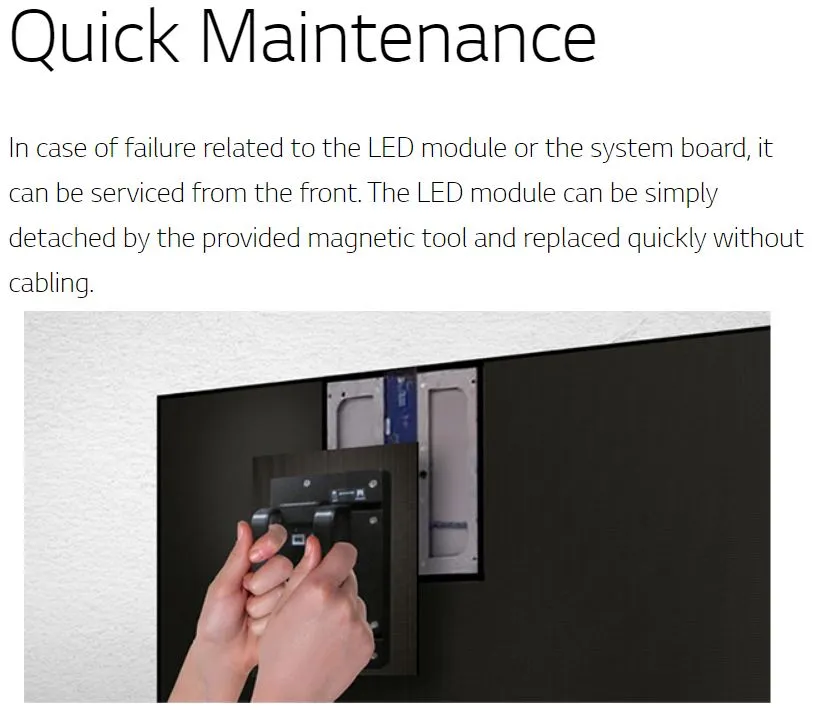

• Service Access Front

Optical Parameter

• Brightness 500 nit
• Color Temperature (K) 7,300
• Visual Viewing Angle (Horizontal/Vertical) 160 / 160
• Brightness Uniformity 98%
• Color Uniformity ±0.015Cx,Cy
• Contrast Ratio 3000 : 1
• Processing Depth (bit) 16

Electrical Parameter

• Power Consumption (W/Screen, Max.) 1,700
• Power Consumption (W/Screen, Avg.) 560
• Power Consumption (W/m², Max.) 336
• Power Consumption (BTU/h/Screen, Max.) 5,801
• Power Consumption (BTU/h/Screen, Avg.) 1,911
• Power Consumption (BTU/h/㎡, Max.) 1,146
• Power Supply (V) 100 to 240
• Frame Rate (Hz) 50 / 60
• Refresh Rate (Hz) ≥ 2,880

Operation Conditions

• Lifetime (Hours to Half Brightness) 100,000
• Operating Temperature (°C) 0℃ to 40℃
• Operating Humidity <90%RH (without condensation)
• IP rating Front / Rear IP30 / IP20

Sound

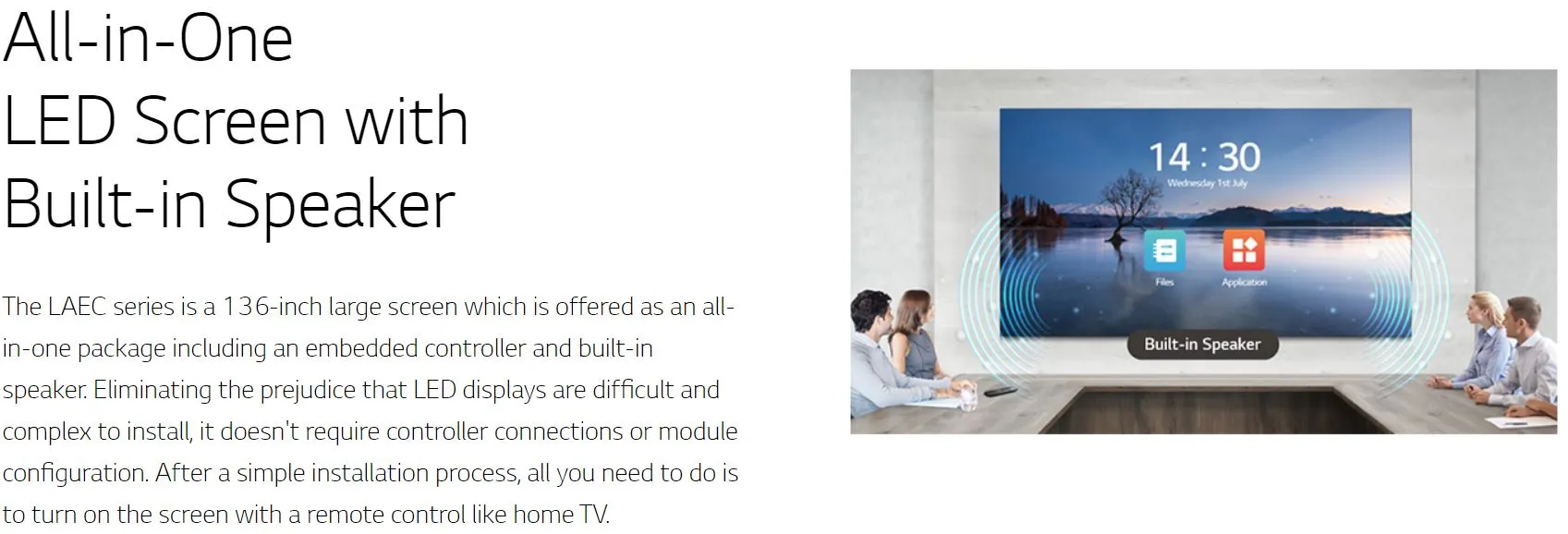

• Speaker Built-in (9W 9W)

Certification

• CE, FCC, ETL, CB

Environment

• Environment RoHS, REACH

Controller

• Controller Embedded
